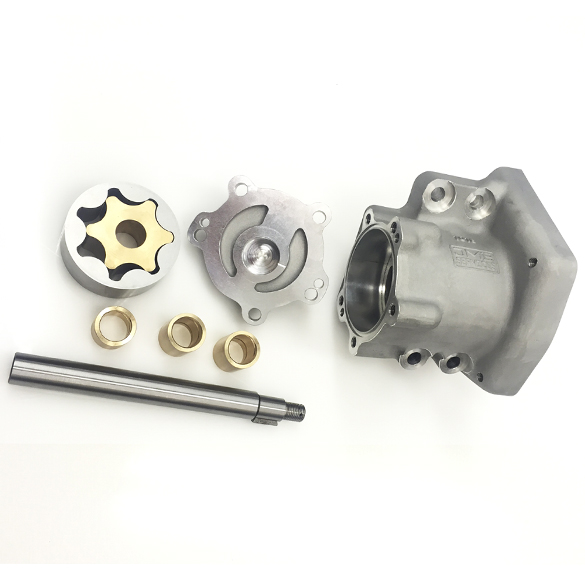

Project: Custom Oil Pump For Aston Martins
Project: Oil Pump

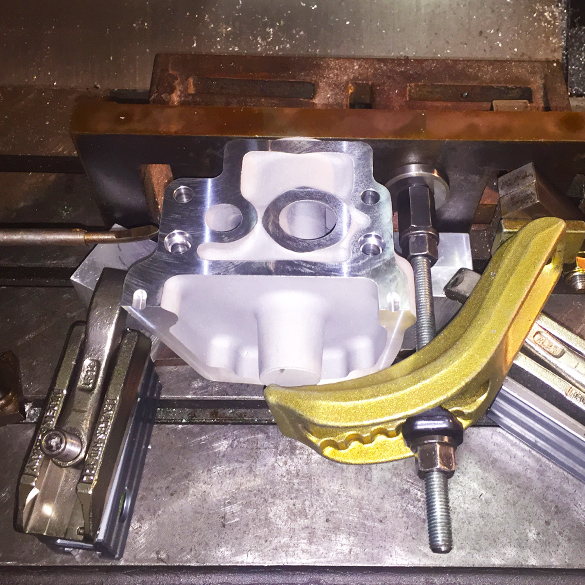

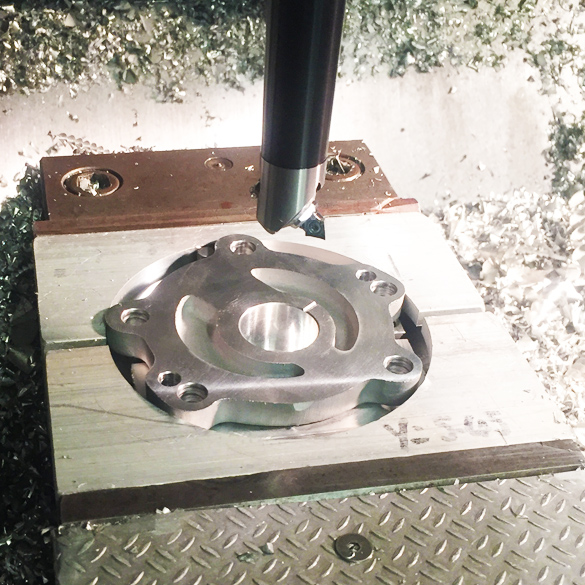

Below is the Process of Designing & Machining the New JMB Oil Pump
The Designing of

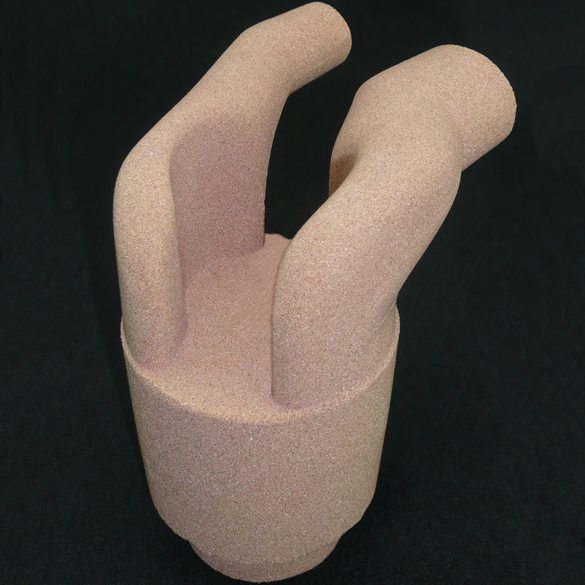

Oil Passage Core

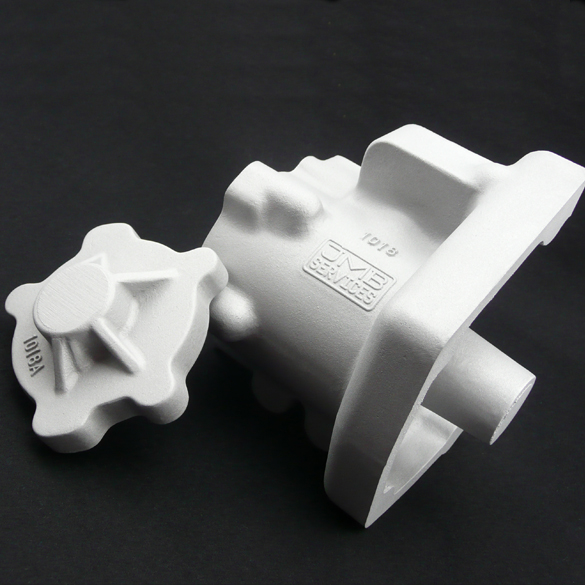

The patterns and castings were made in England by the finest British craftsman. This picture shows the reworked oil passage core with JMB Services modifications which give a smoother oil flow path.
The Designing of

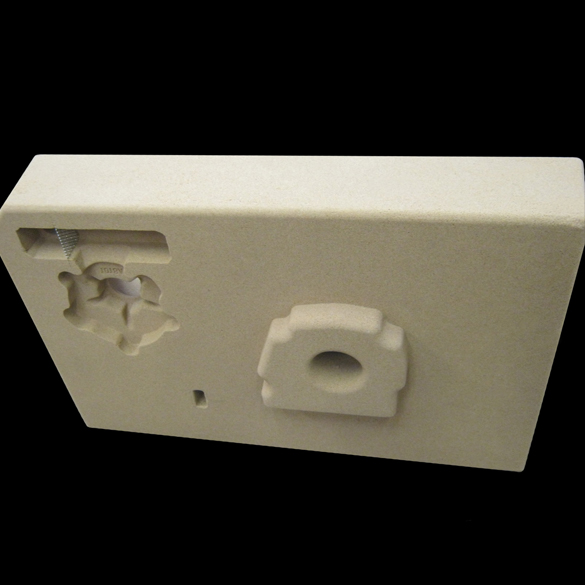

Casting Patterns
Sand pattern lid which incorporates the oil pump back plate ready for assembly.
The Designing of
Casting Patterns

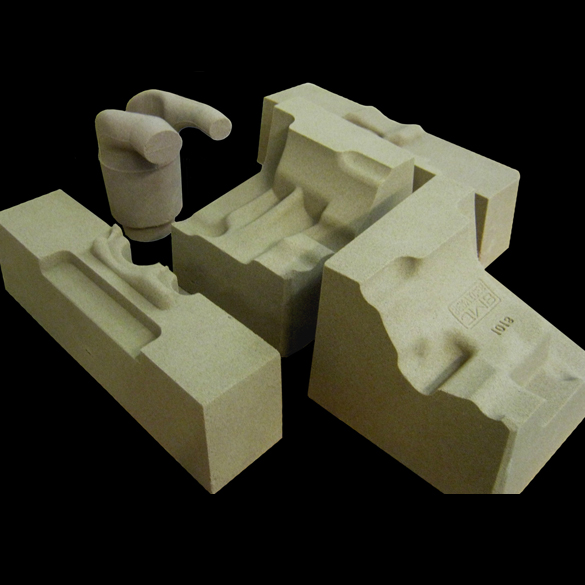

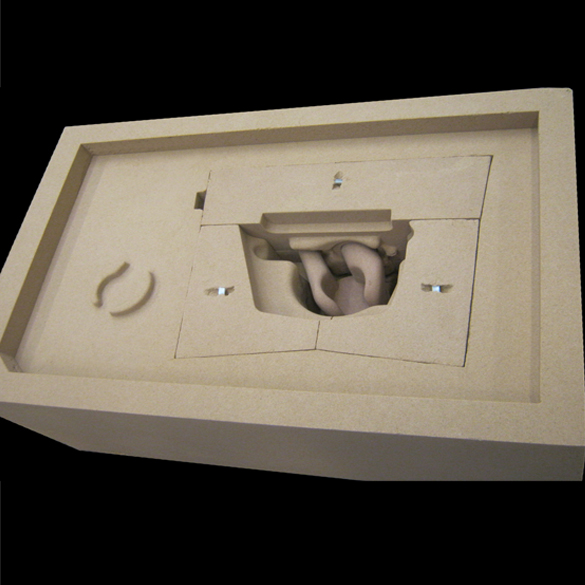

Here are the finished sand cores ready for assembly into the pattern.
